JF Series Female Threaded Rod End Bearing For Agricultural Tillage Equipment

JF Series Female Threaded Rod End Bearing For Agricultural Tillage Equipment

Bearing number:JF2*/JF3*/JF4*/JF5*/JF6/JF7/JF8/



Materials:Steel/stainless steel/aluminum

Load ratings(Max.KN/Dynamic):193.670


Warranty:1 Year

Business Type: Manufacturer

Brand Name: SAIVS

Place of Origin:Ningbo,ZheJiang

Customized support:OEM,ODM

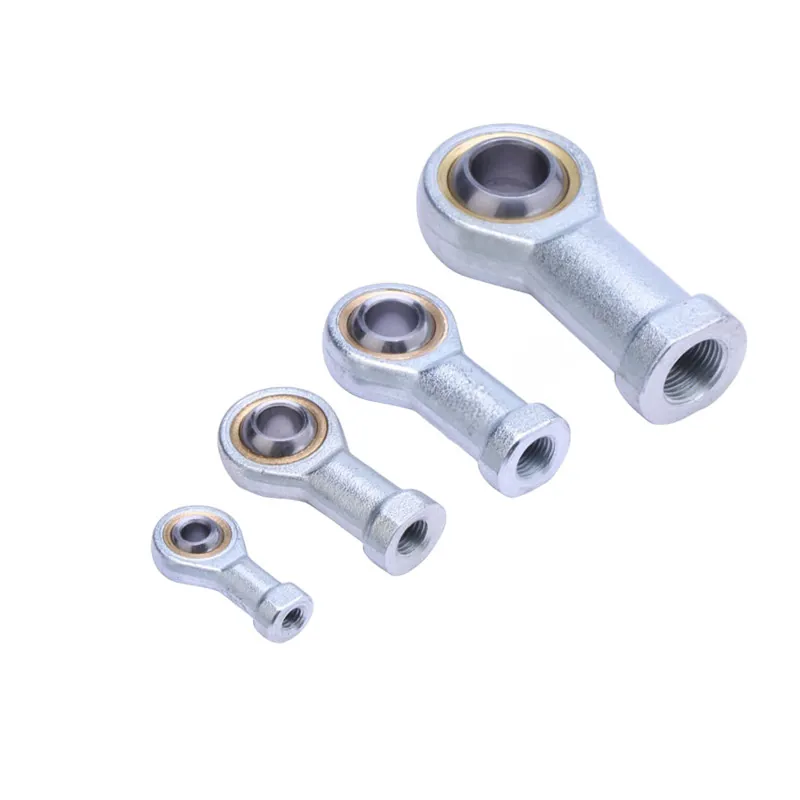

JF Series Female Threaded Rod End Bearing For Agricultural Tillage Equipment-1-Image-SAIVS
JF Series Female Threaded Rod End Bearing For Agricultural Tillage Equipment-2-Image-SAIVS
JF Series Female Threaded Rod End Bearing For Agricultural Tillage Equipment-3-Image-SAIVS
JF Series Female Threaded Rod End Bearing For Agricultural Tillage Equipment-4-Image-SAIVS
 Bearing numberJF series,Female Threaded - Rod End Bearing  Dimensions mmkNRadial clearance mmWeight Kg
ddkC1d2h1L3 minW d5a0Load ratings kN/ Static
JF2*3.1756.357.924.7512.76-3220.6211.16.357.9285.3440.01 〜0.030.009
JF3*4.8267.9211.16.3515.8810-3226.9714.277.9210.316.56.8050.01 〜0.030.017
JF4*6.3509.5312.77.1419.051/4-2833.3219.059.5311.91811.2970.01 〜0.030.027
JF5*7.93811.115.888.7422.235/16-2434.9319.0511.112.7713.9340.01 〜0.030.042
JF69.52512.718.2610.3125.43/8-2441.2823.814.2717.45617.4160.015 〜0.060.069
JF711.11314.2720.6211.10 28.587/16-2046.0226.9715.8819.05718.7590.015 〜0.060.090
JF812.7015.8823.812.70 33.321/2-2053.9830.1519.0522.23629.6240.015 〜0.060.149
JF1015.87519.0528.5814.2738.15/8-1863.50 38.122.2325.4832.7520.04 〜0.080.216
JF1219.0522.2333.3217.4544.453/4-1673.0344.4525.40 28.58751.2370.04 〜0.080.328
JF1422.22522.2334.9319.4350.87/8-1485.7347.6328.5833.023.582.1850.05 〜0.090.467
JF14-122.22522.2333.3217.4550.87/8-1488.90 46.0230.1533.326101.6010.05 〜0.090.467
JF1625.4034.9347.6325.40 69.8511/4-12104.7853.9838.10 41.288.5193.6700.05 〜0.090.964
JF16-125.4034.9347.6325.40 69.851-14104.7853.9838.10 41.288.5193.6700.05 〜0.091.093
JF16-225.4034.9347.6325.40 69.851-12104.7853.9838.10 41.288.5193.6700.05 〜0.091.093

Dimensions in mm

Note: For left-hand thread,Please add suffix“L",e. g.JFL20

Lubricating hole or grease nipple isn't available for the size marked"*”

When a grease nipple is required for other sizes, please use the sign JF..s.

Sliding contact surfaces: Steel/ Steel

Design and application features:

Rod End of steel and zinc coated;Can be lubricated via a nipple or a hole in the rod end,

It hascharacteristic of large load capability,easy mounting and dismounting and mechanism simplification.

Linkage Systems for Tillage Implements: The JF Series bearings are integrated into the linkage systems of tillage equipment,

connecting key components such as tillage implements, colters, or harrows.

They provide a pivotal connection point, allowing for controlled movement and articulation of tillage tools during field operations.

Implement Articulation and Adjustment: These bearings are employed at critical joints where implement arms or blades are attached,

enabling farmers to adjust the angle and depth of tillage tools.

The threaded rod end design facilitates easy and precise adjustments, allowing farmers to optimize tillage operations based on soil conditions.

Steering and Control Mechanisms: In certain tillage equipment, the JF Series bearings are utilized in steering and control mechanisms,

contributing to the responsive and accurate steering of the equipment.

They play a role in ensuring that the tillage equipment maintains a straight and consistent path during operation.

Vibration Damping in Harsh Conditions: Agricultural Tillage Equipment often operates in challenging and uneven terrain.

The JF Series bearings contribute to the absorption of shocks and vibrations, enhancing the overall stability and durability of the machinery.

Hydraulic Systems Integration: These bearings may be integrated into hydraulic systems within tillage equipment, allowing for controlled

movements in response to hydraulic pressure.

Hydraulic adjustments, such as raising or lowering tillage implements, can be facilitated by the precise and reliable movement provided by the JF Series bearings.

Durability in Aggressive Environments: The JF Series bearings are designed to withstand the harsh conditions encountered in agricultural

fields, including exposure to dirt, moisture, and varying temperatures.

Their robust construction ensures longevity and reliable performance in demanding tillage applications.


Company Profile:

Established in 1989, Ningbo Saivs Machinery Co., Ltd. is a leading manufacturer and exporter specializing in investment casting, sand casting, and die castings. Our TS 16949-certified facility in Ningbo, China, ensures top-notch quality and timely delivery.

With extensive import and export experience, we offer high-quality products at competitive prices, tailored to your specific requirements. Our strong R&D and QC departments guarantee products meet stringent criteria, with the flexibility to produce according to your drawings and samples.

Producing over 12,000 tons annually across 1,000 varieties, our castings serve industries such as metallurgy, automotive, chemical, shipbuilding, and hardware. Over 60% of our products are exported globally. Our advanced facilities include medium-frequency induction furnaces, die-casting machines (250-1600 tons), and cutting-edge testing instruments.

Quality Standard:

We excel in producing Female Threaded Rod End Bearing for superior performance and durability. Precision engineering, overseen by our dedicated experts, ensures products meet stringent quality criteria.

Competitive Pricing:

Our dedication to producing superior connecting components is evident in the quality of our Female Threaded Rod End Bearing. Precision engineering,

closely monitored by our experts, guarantees that our products consistently meet and surpass stringent quality standards, ensuring

exceptional performance and durability.

The company according to the process and product structure consisting of organic processing, automatic grinding, and centerless grinding,

linear guide, heat treatment, assembly • total 6 workshops, integrated use of the machining, all kinds of grinding machining, the common heat treatment with high-frequency heat treatment, stamping, rolling, polishing, the malleable cast made, injection molding, welding, adhesive,

constant temperature baking, such as dozens of technology and equipment, to meet the different needs of customer production from global
