JM Series Male Threaded Rod End Bearing For Agricultural Fertilizer Spreaders

JM Series Male Threaded Rod End Bearing For Agricultural Fertilizer Spreaders

Bearing number:JM2*/JM3*/JM4*/JM5*/JM6/JM7/JM8/



Materials:Steel/stainless steel/aluminum

Load ratings(Max.KN/Static):193.670


Warranty:1 Year

Business Type: Manufacturer

Brand Name: SAIVS

Place of Origin:Ningbo,ZheJiang

Customized support:OEM,ODM

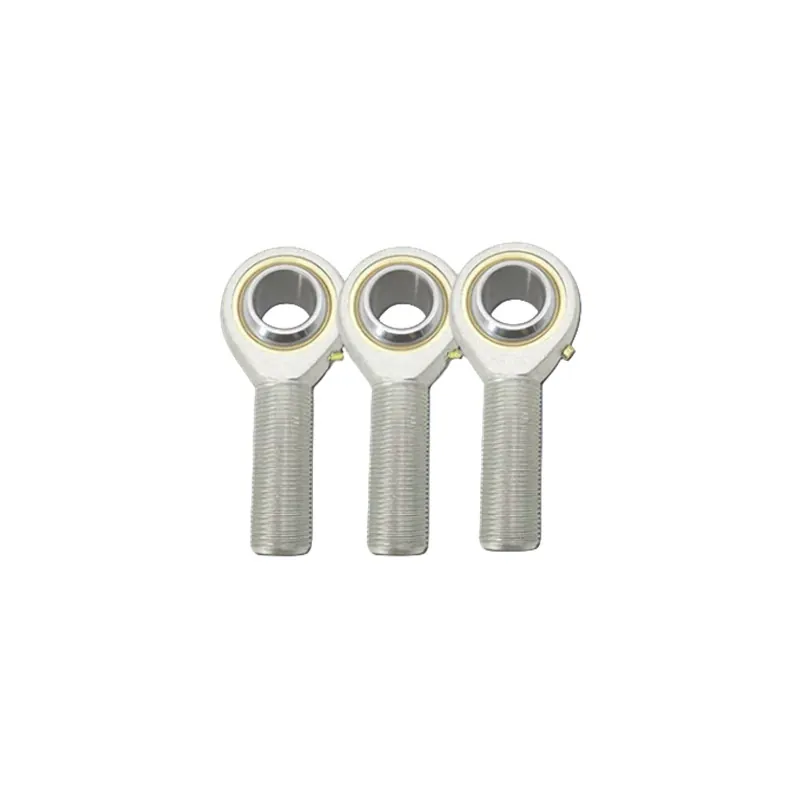

JM Series Male Threaded Rod End Bearing For Agricultural Fertilizer Spreaders-1-Image-SAIVS
JM Series Male Threaded Rod End Bearing For Agricultural Fertilizer Spreaders-2-Image-SAIVS
JM Series Male Threaded Rod End Bearing For Agricultural Fertilizer Spreaders-3-Image-SAIVS
JM Series Male Threaded Rod End Bearing For Agricultural Fertilizer Spreaders-4-Image-SAIVS
 Bearing numberJM series,Male Threaded - Rod End Bearing Dimensions mmkNRadial clearance mmWeight Kg
dBdkC1d2h1L3 mina0Load ratings kN/ Static
JM2 *3.1756.357.924.7512.706-3223.8014.2782.2360.01 〜0.030.006
JM3 *4.8267.9211.106.3515.8810-3231.7519.056.55.1970.01 〜0.030.013
JM4 *6.3509.5312.707.1419.051/4-2839.6725.4089.6000.01 〜0.030.020
JM5 *7.93811.1015.888.7422.235/16-2447.6331.75712.3850.01 〜0.030.033
JM 69.52512.7018.2610.3125.403/8-2449.2331.75617.4160.015 〜0.060.051
JM 711.11314.2720.6211.1028.587/16-2053.9834.93718.7590.015 〜0.060.073
JM812.7015.8823.8012.7033.321/2-2061.9338.10629.6240.015 〜0.060.113
JM 1015.87519.0528.5814.2738.105/8-1866.6841.28832.7520.04 〜0.080.173
JM 1219.0522.2333.3217.4544.453/4-1673.0344.45751.2370.04 〜0.080.273
JM 1422.22522.2334.9319.4350.807/8-1485.7350.803.582.1850.05 〜0.090.411
JM 14-122.22522.2333.3217.4550.807/8-1485.7347.636101.6010.05 〜0.090.411
JM 1625.4034.9347.6325.4069.855/4-12104.7853.988.5193.6700.05 〜0.091.091
JM 16-125.4034.9347.6325.4069.851-14104.7853.988.5193.6700.05 〜0.090.965
JM 16-225.4034.9347.6325.4069.851-12104.7853.988.5193.6700.05 〜0.090.965

Dimensions in mm

Note:For left-hand thread, Please add suffix"L",e. g.JFL20

Lubricating hole or grease nipple isn't available for the size marked"*”

When a grease nipple is required for other sizes, please use the sign JF..S.

Sliding contact surfaces : Steel/ Steel

Design and application features:

Rod End of steel and zinc coated;Can be lubricated via a nipple or a hole in the rod end,

It hascharacteristic of large load capability, easy mounting and dismounting and mechanism simplification.

Hopper and Spreader Mechanism:The JM Series bearings are integrated into the linkage systems that connect the fertilizer hopper to the

spreading mechanism of the equipment.

They provide a pivotal connection point, allowing for controlled movement and articulation of the spreading components during fertilizer


Adjustment of Spread Pattern:These bearings are used in critical joints where adjustment mechanisms are located, enabling farmers to control the spread pattern of the fertilizer.

The threaded rod end design facilitates easy and precise adjustments, allowing farmers to optimize fertilizer distribution based on the specific needs of the field.

Steering and Control Mechanisms:In some fertilizer spreaders, the JM Series bearings are employed in steering and control mechanisms,

contributing to the responsive and accurate steering of the equipment.

They play a role in ensuring that the fertilizer spreader maintains a straight and consistent path during operation.

Vibration Damping in Field Conditions:Agricultural Fertilizer Spreaders operate in varying terrains. The JM Series bearings contribute to the

absorption of shocks and vibrations, enhancing the overall stability and durability of the machinery, especially during field application.
